High Voltage DC
Silicon Rubber Cables

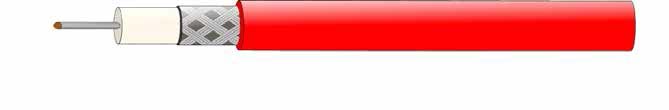

50kV DC Screened Silicon Wire
APPLICATIONS:
The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries,
television receivers, transformers,high-voltage cables for electronic instruments, etc.
Rated Voltage:
50kV
CONSTRUCTION:
Conductor: Annealed copper conductor, class 5.
Insulation: Silicon rubber.
Screen: Tinned copper wire braiding.
Sheath: Silicon rubber.
COLOR CODE:
Red, (other colours upon request).
PHYSICAL PROPERTIES:
Operating Temperature: -45°C-180°C
Dimension Data:
Part NO. |
Conductor |
Overall Diameter |
|||
|---|---|---|---|---|---|
No. of Core X Cross Section |
No./Nominal |
Nominal Diameter |
Min. |
Max. |
|
|
mm² |
No./mm |
mm |
mm |
|
HVDC-SCS-1C0.75 |
1x0.75 |
24/0.2 |
1.2 |
13.0 |
17.3 |
